Types of OS

throughput
it means the number of jobs completed for unit time is called throughput of a system

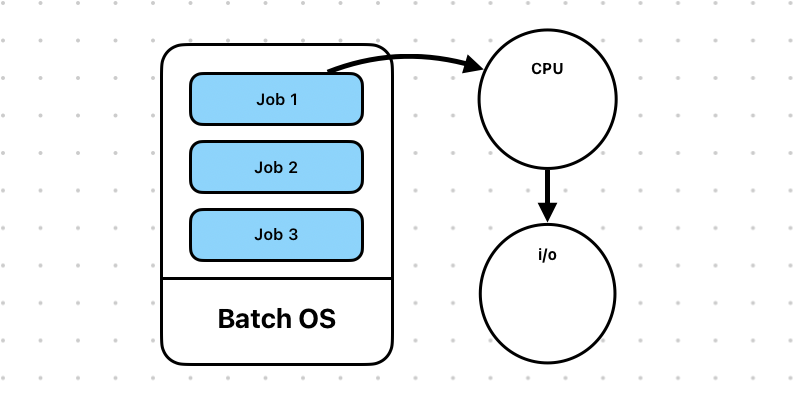

1. Batch OS​

Image 1
1 / 5
  • If one job is finished completely then only another job will be scheduled into CPU
  • Increased cpu idleness
  • Decreased throughput of the systems
  • ex: IBM os 2

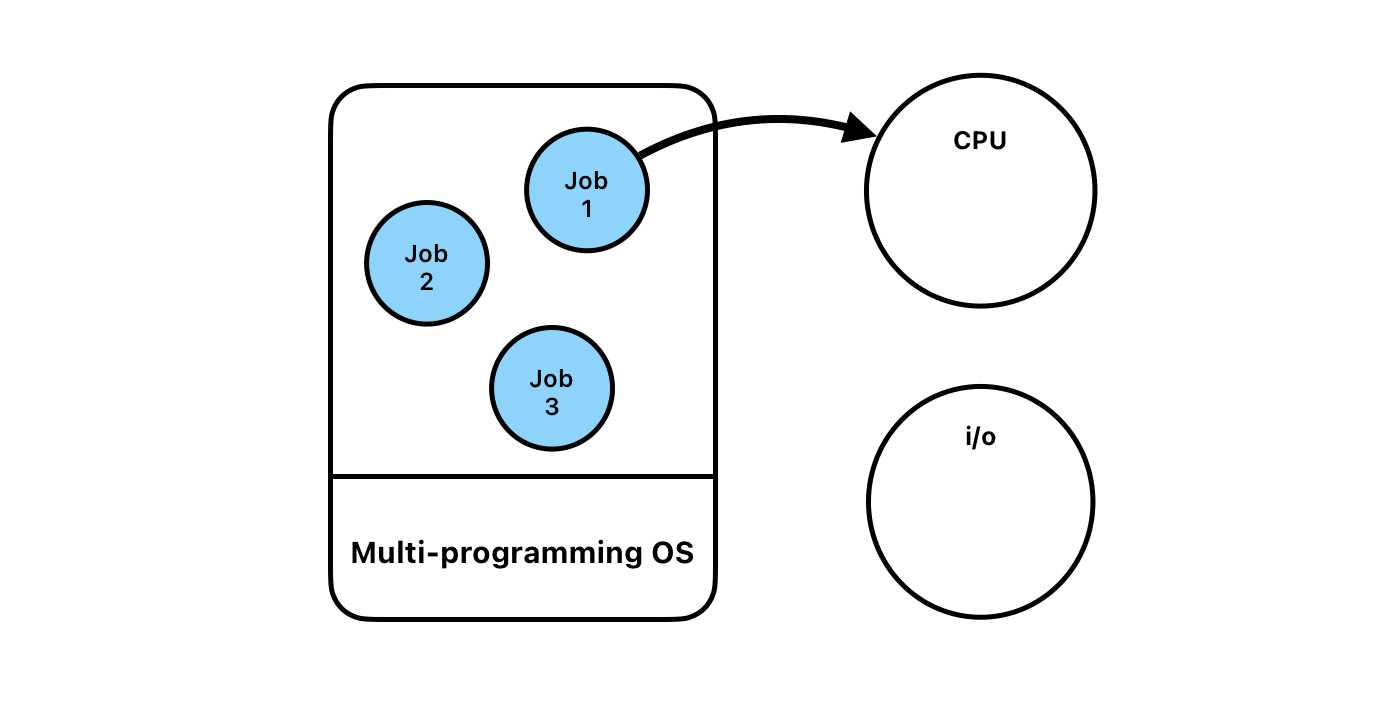

2. Multi-Programming OS​

Image 1
1 / 3
  • if job is leaving the CPU then the another job which is ready for execution will be scheduled on to the CPU
  • Increased CPU utilization
  • increased throughput of the system
  • ex: windows, unix, linus.

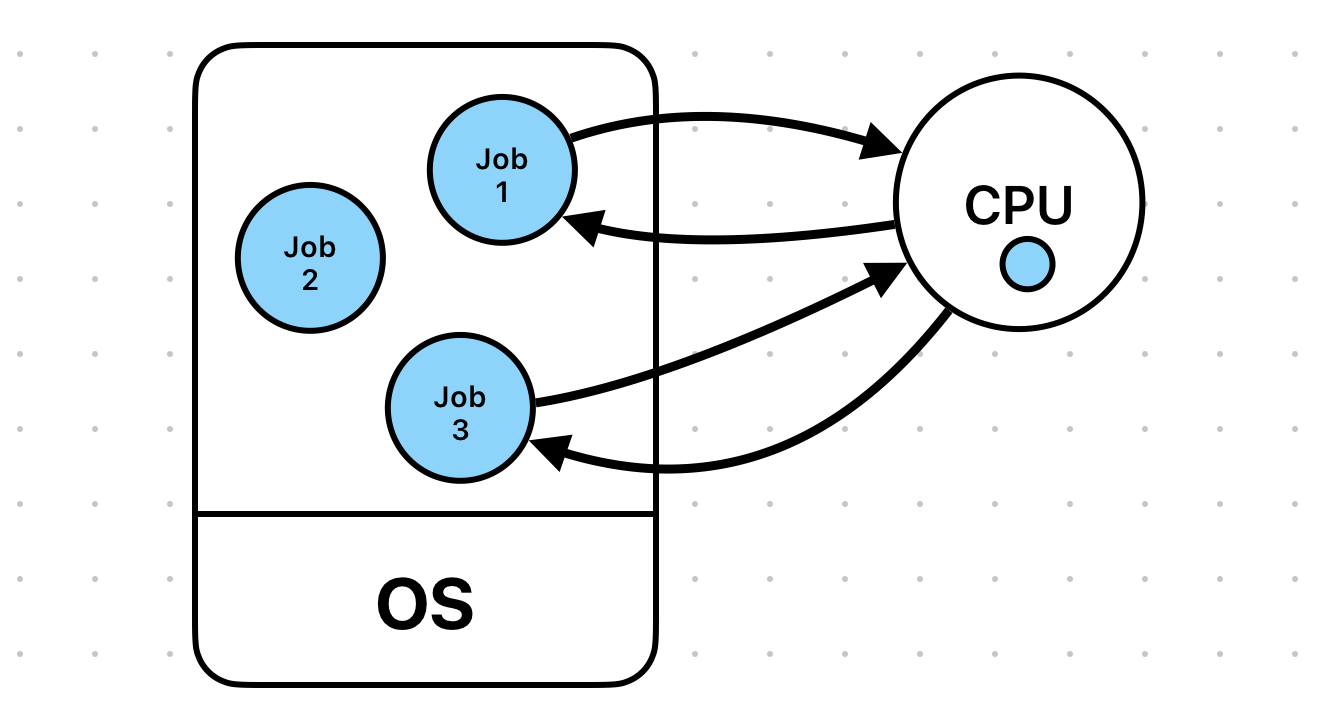

Multi-Taksing​

multi-tasking os imgae

  • Multitasking is an extension of multi-programming OS
  • the jobs will be executed in the time shared mode
  • ex: windows, unix, linux

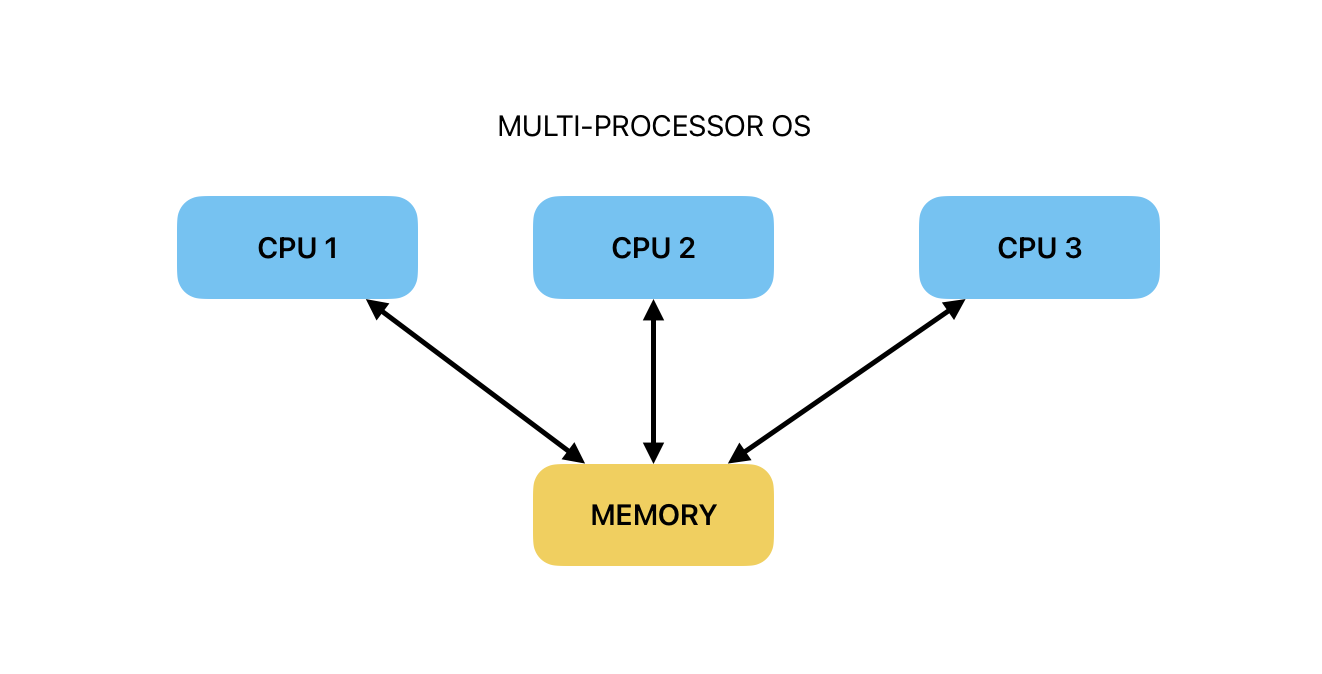

Multi processor OS​

multi-processor os image

  • Increased throughput of the system
  • reliability: if one cpu is failed the system will still run with the help of remaining CPU's (fault tolarant systems)
  • thsese systems are Economical
  • ex: unix

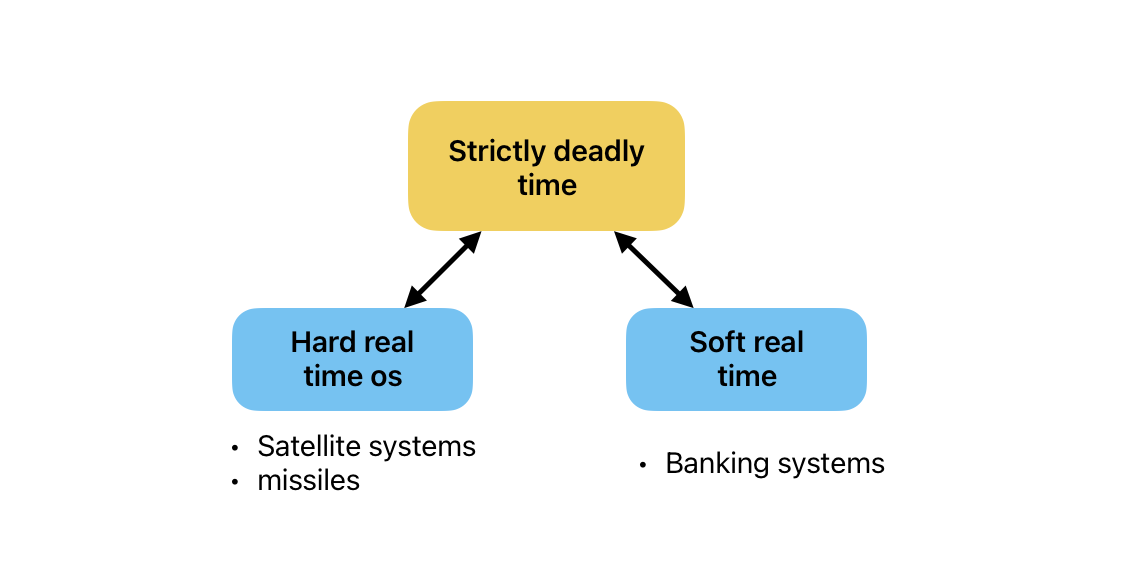

Realtime OS​

realtime os image

the systems which are strict deadly time bound are called real time systems ex: sx works, ux works, RTOS
